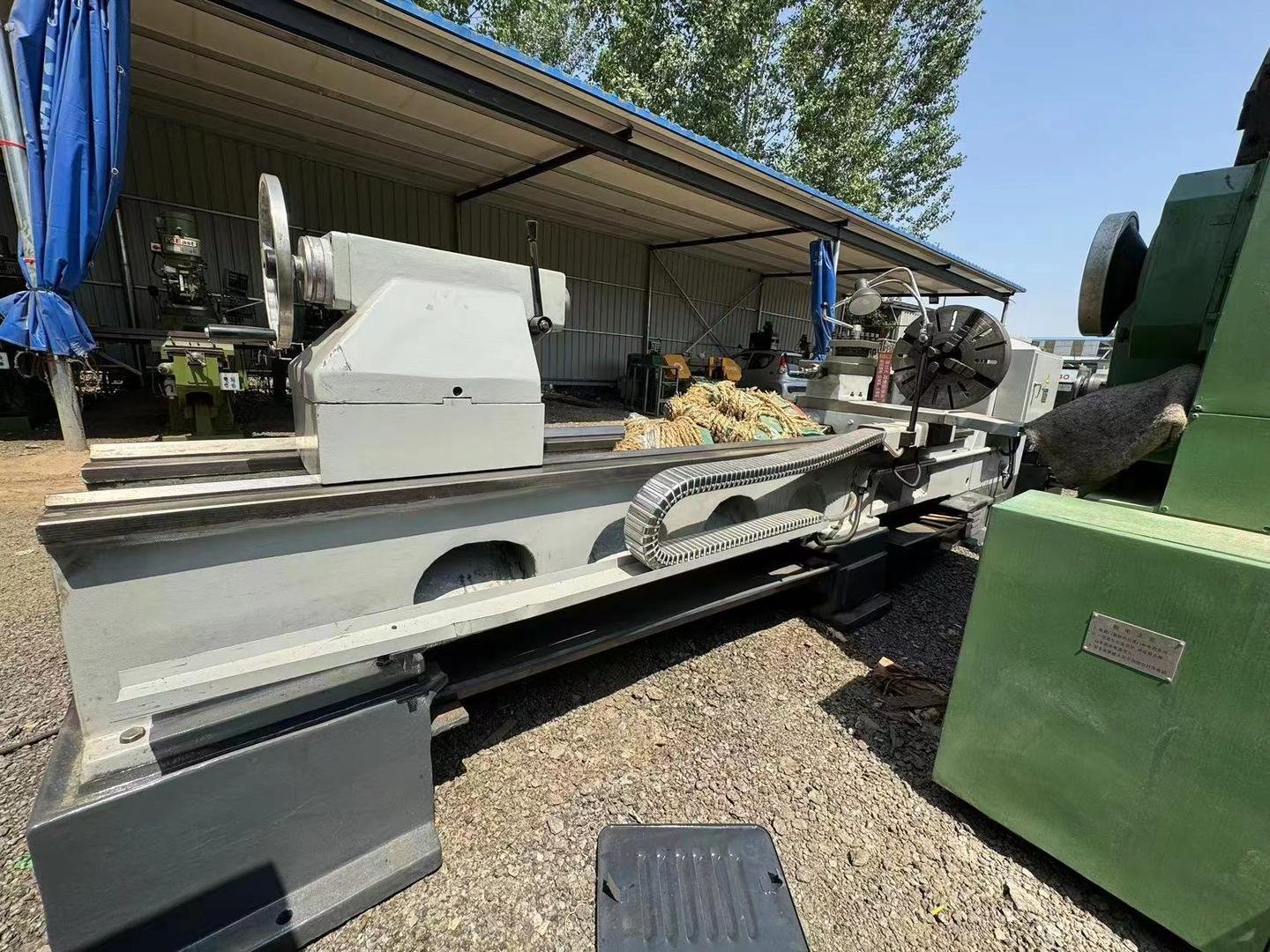

Shenyang CW6280B Gap Bed Lathe (Length: 3000mm)
Shenyang CW6280B is a large gap bed lathe with a removable gap for extremely large diameter workpieces. Ideal for flange, drum, and heavy disc manufacturing. Features a heavy-duty spindle and robust bed. With gap removed, swing reaches 1000mm. Reliable and ready for fast shipment.
$ Click to Get Price
Machine Parameters
Swing over bed: 800 mm
Swing over saddle: 480 mm
Swing in gap: 1000 mm
Gap width: 300 mm
Distance between centers: 3000 mm
Max. turning length: 2800 mm approx.
Spindle bore: 105 mm
Spindle speed: 18 steps 6-800 rpm
Main motor power: 11 kW
Bed width: 550 mm
Tailstock taper: MT5#
Net weight: Approx. 6200 kg
Voltage: 380V/50Hz
Good machine would be sold fast - Contact us for details about prefered ones
