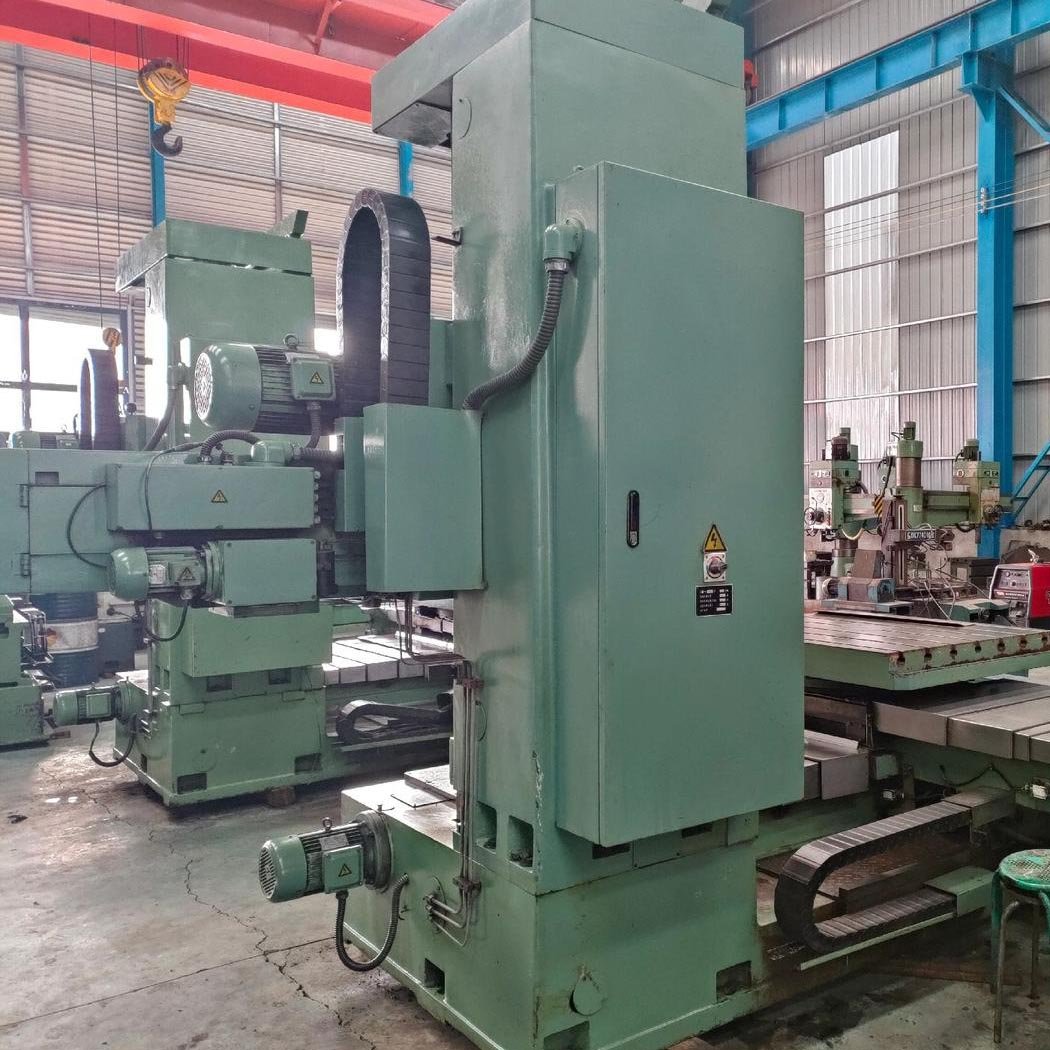

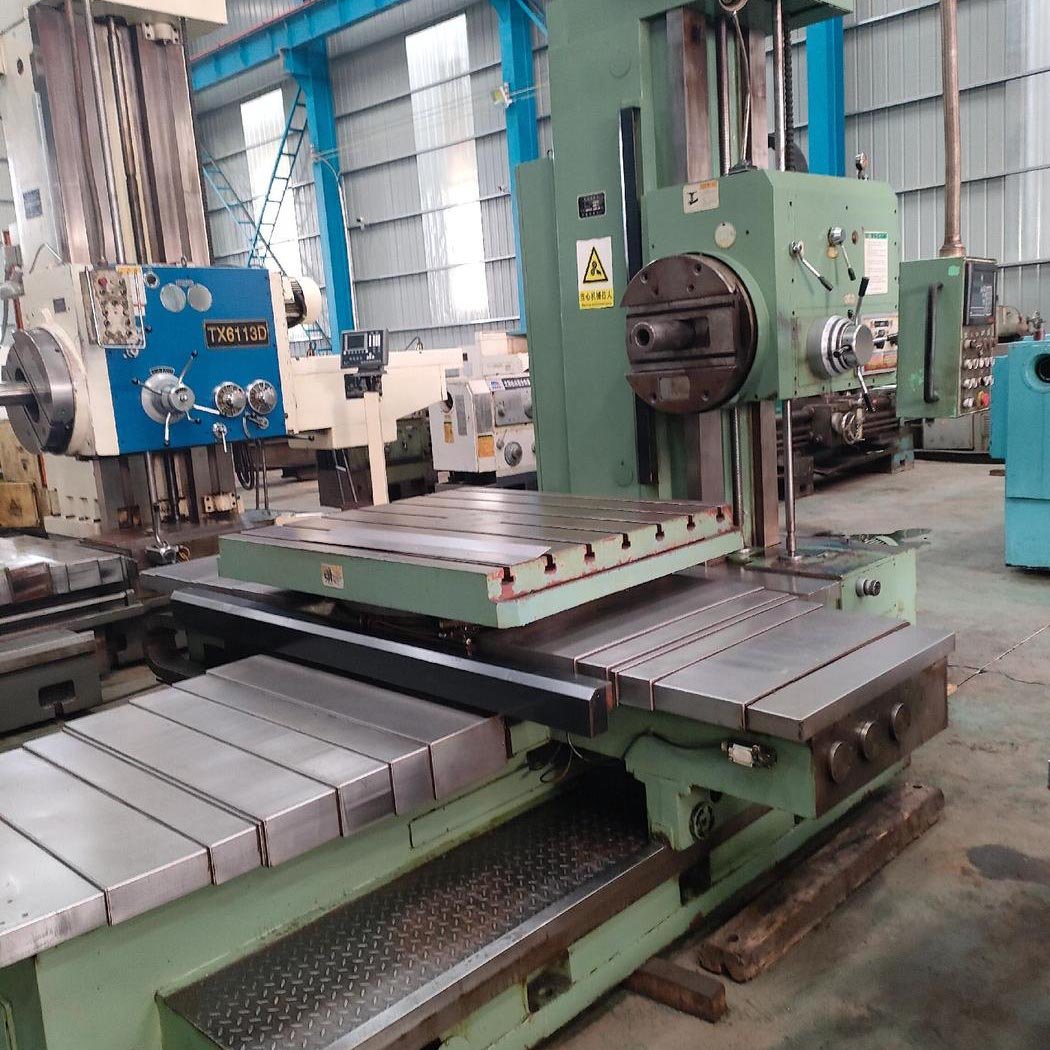

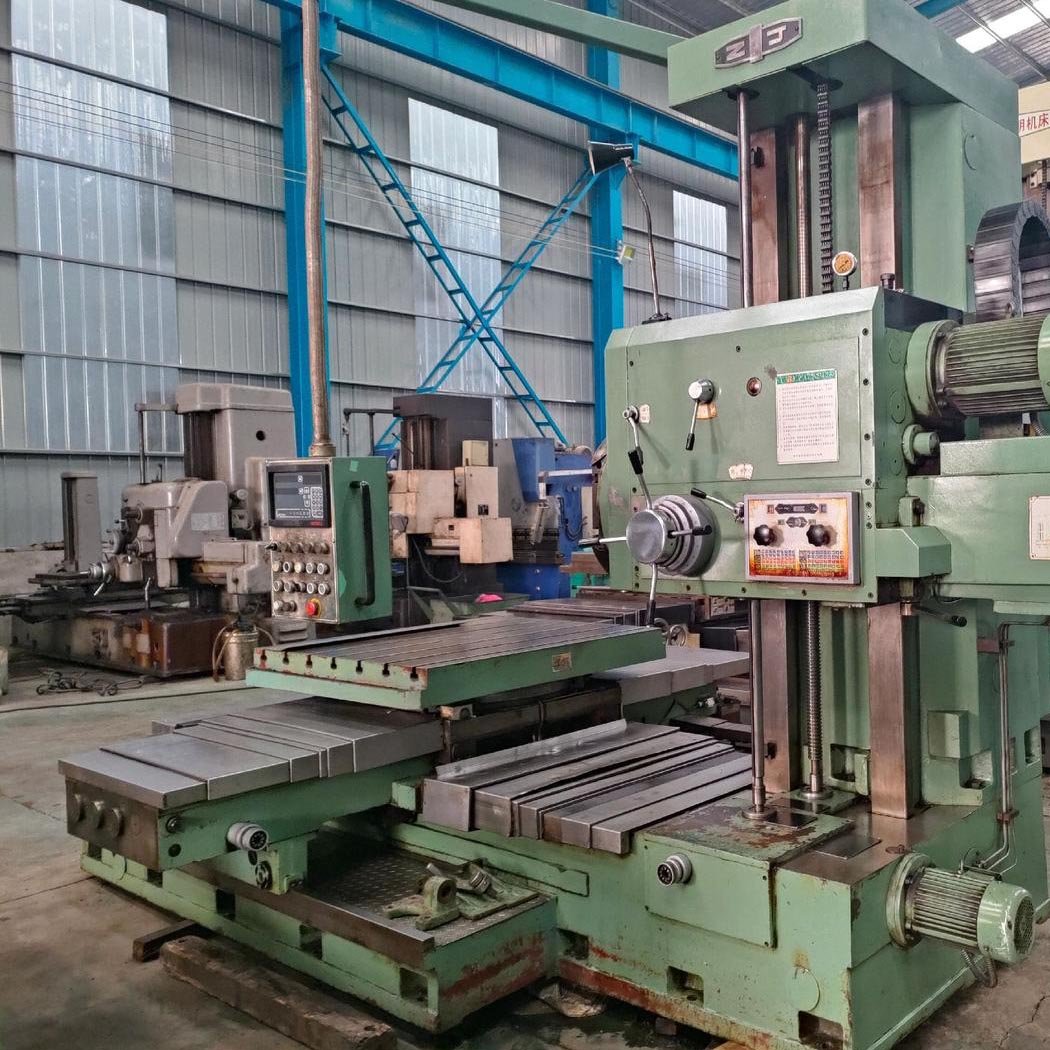

Zhongjie PX611B/3 Horizontal Milling & Boring Machine

The Zhongjie PX611B/3 horizontal milling and boring machine is built for heavy-duty precision machining in tool rooms, mould workshops, and general engineering plants. It is ideal for boring, milling, drilling, reaming, and threading operations on large workpieces such as gearboxes, engine blocks, hydraulic components, and structural parts. The rigid bed construction and robust spindle assembly ensure excellent vibration damping and cutting stability.

Every machine undergoes strict quality inspections at key production stages to guarantee long-term reliability and consistent accuracy. With a well-organised inventory system, we ensure fast dispatch and prompt delivery to minimise your downtime. The PX611B/3 combines versatility, durability, and efficiency for demanding machining tasks.

$ Click to Get Price

Machine Parameters

Spindle diameter: 110mm
Spindle taper: ISO 50 (7:24)
Spindle speed range: 9 – 1100 rpm (22 steps)
Spindle axial travel (W): 600mm
Table working area (L×W): 1600mm × 1250mm
Longitudinal travel (X): 1500mm
Cross travel (Y): 1200mm
Vertical travel (Z): 1400mm
Main motor power: 11 kW
Overall dimensions (L×W×H): approx. 4700mm × 3100mm × 3100mm
Machine weight: approx. 12500 kg
