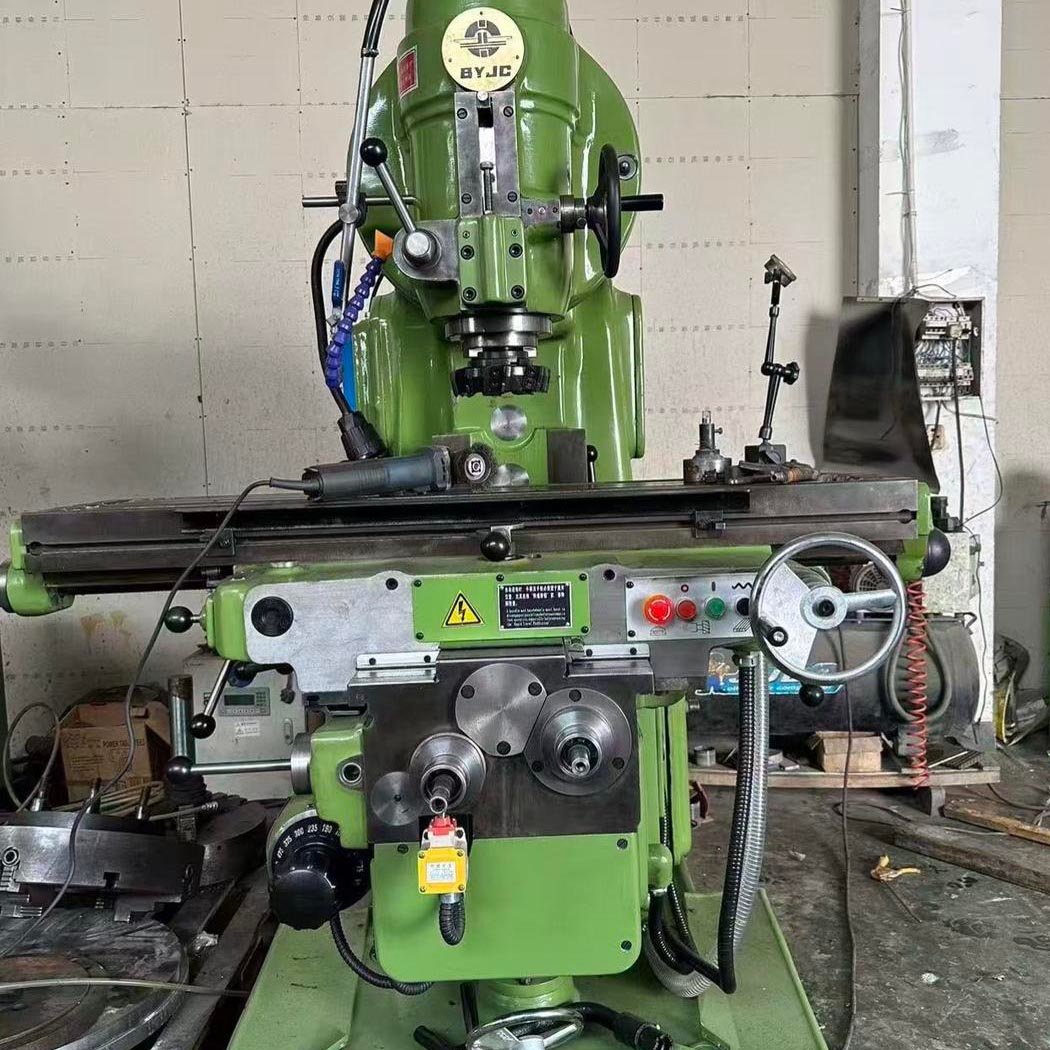

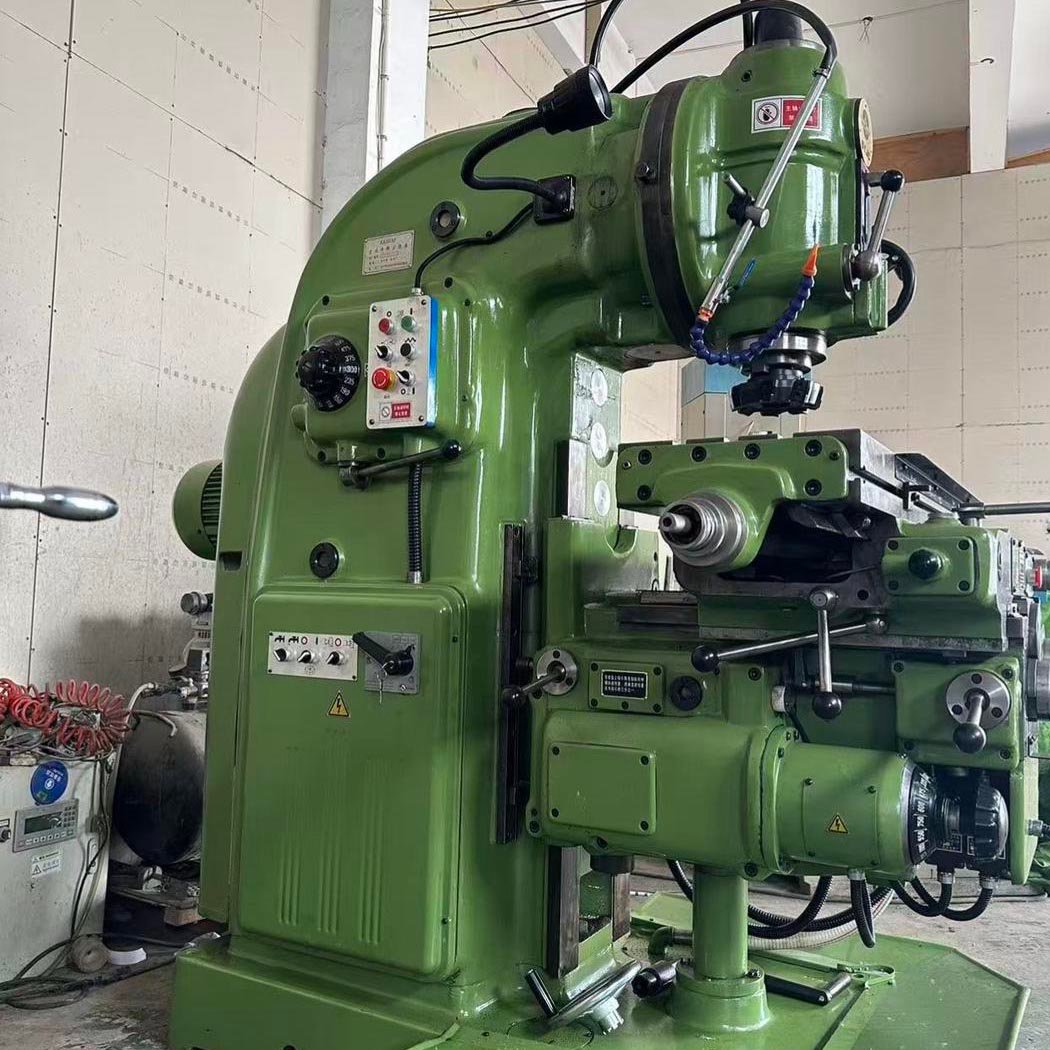

The Beijing No.1 Machine Tool Plant 5032 vertical milling machine is a reliable solution for general machining workshops, tool rooms, and maintenance facilities. It is well suited for milling flat surfaces, slots, gears, and various profiled workpieces using end mills, face mills, or form cutters on components such as jigs, fixtures, brackets, and small-to-medium parts. The sturdy column and knee-type construction provide good rigidity and stability during cutting operations.
Each unit is subject to thorough in-process and final inspections to ensure consistent quality and long service life. Our efficient logistics and inventory management allow for fast dispatch, helping you keep production on schedule. The 5032 vertical mill offers a practical balance of capacity, ease of use, and dependable performance for everyday shop needs.
$ Click to Get Price
Machine Parameters
Table working area (L×W): 1600mm × 320mm
Longitudinal travel (manual/power): 900mm / 880mm
Cross travel (manual/power): 315mm / 300mm
Vertical travel (manual/power): 385mm / 365mm
Spindle taper: ISO 50 (7:24)
Spindle speed range: 30 – 1500 rpm (18 steps)
Spindle motor power: 7.5 kW
Overall dimensions (L×W×H): 2272mm × 1770mm × 2094mm
Machine weight: approx. 3200 kg
Good machine would be sold fast - Contact us for details about prefered ones
