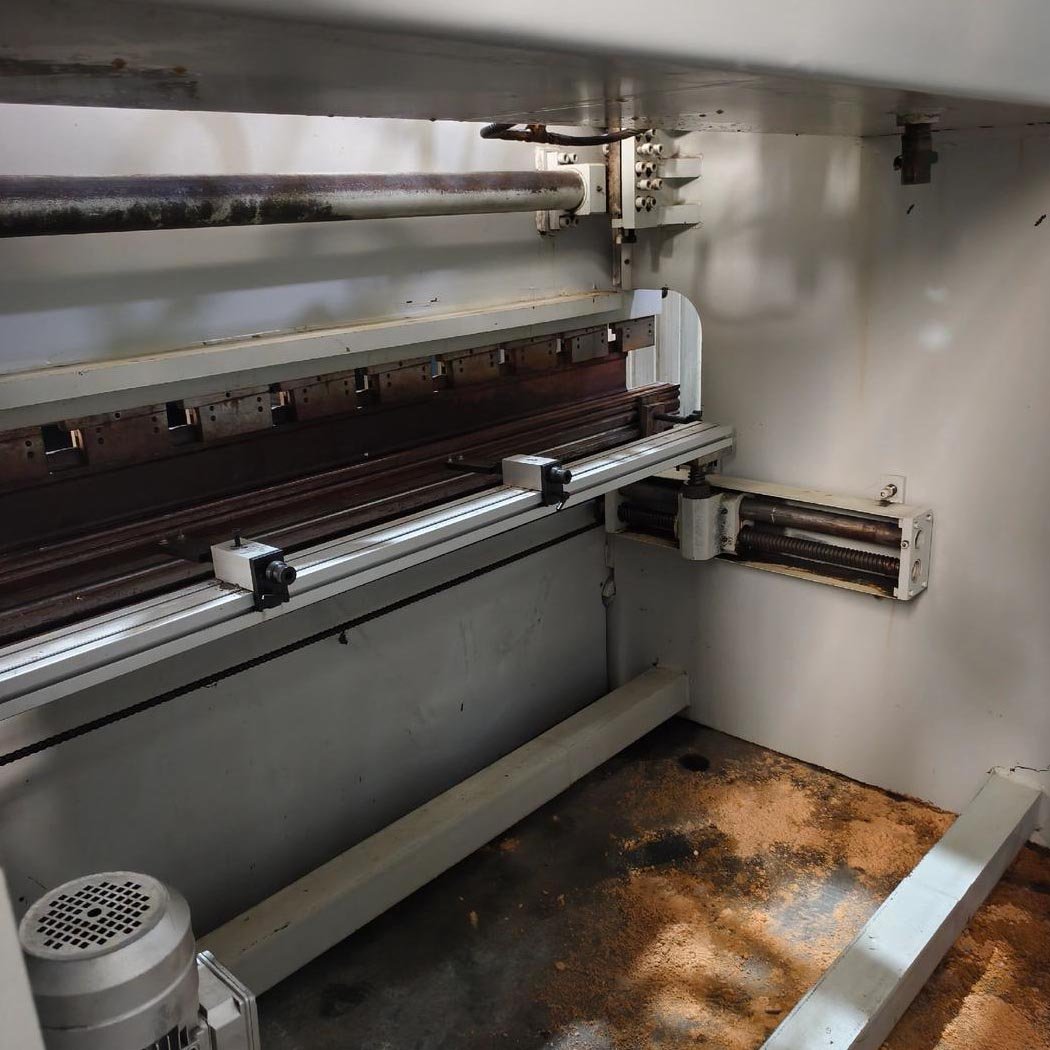

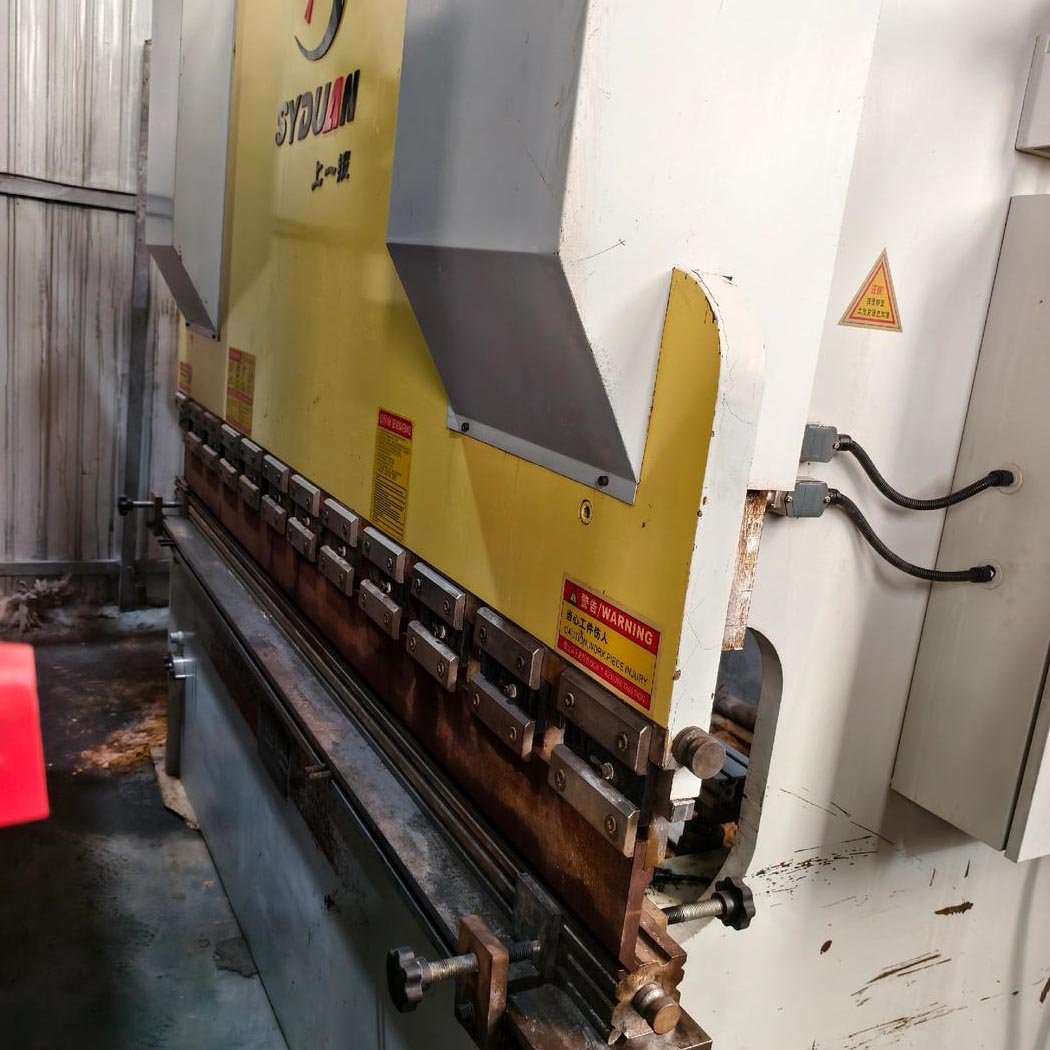

SYDUAN 125 Ton / 2500mm Hydraulic Bending Machine
SYDUAN 125-ton hydraulic press brake features hydraulic up-stroking drive with a fully welded steel frame for high strength and rigidity. With a nominal pressure of 125 tons and a bending length of 2500mm, it is ideal for medium to heavy plate bending applications. Widely used in construction machinery, steel structures, automotive manufacturing, and power equipment. Equipped with mechanical synchronization and crowning compensation for high bending accuracy. Fast delivery with comprehensive after-sales support.

$ Click to Get Price

Machine Parameters

Nominal Pressure: 1250 kN (125 tons)
Bending Length: 2500 mm
Distance Between Housings: Approx. 2000 mm
Throat Depth: 250-320 mm
Ram Stroke: 100-140 mm
Max. Open Height: 340-400 mm
Main Motor Power: 7.5-11 kW
Weight: Approx. 5500-6500 kg
Voltage: 380V/50Hz
Synchronization: Torsion Bar
Crowning: Mechanical
