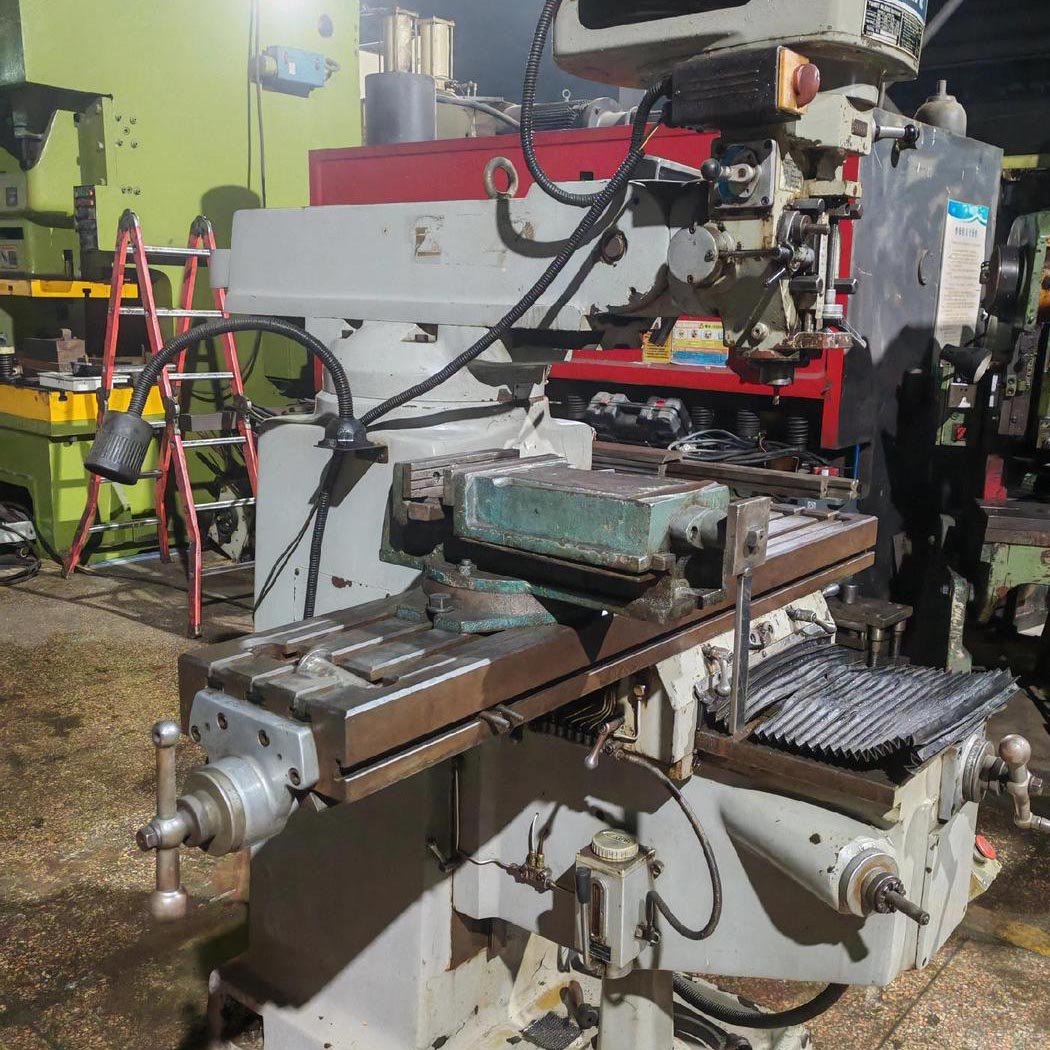

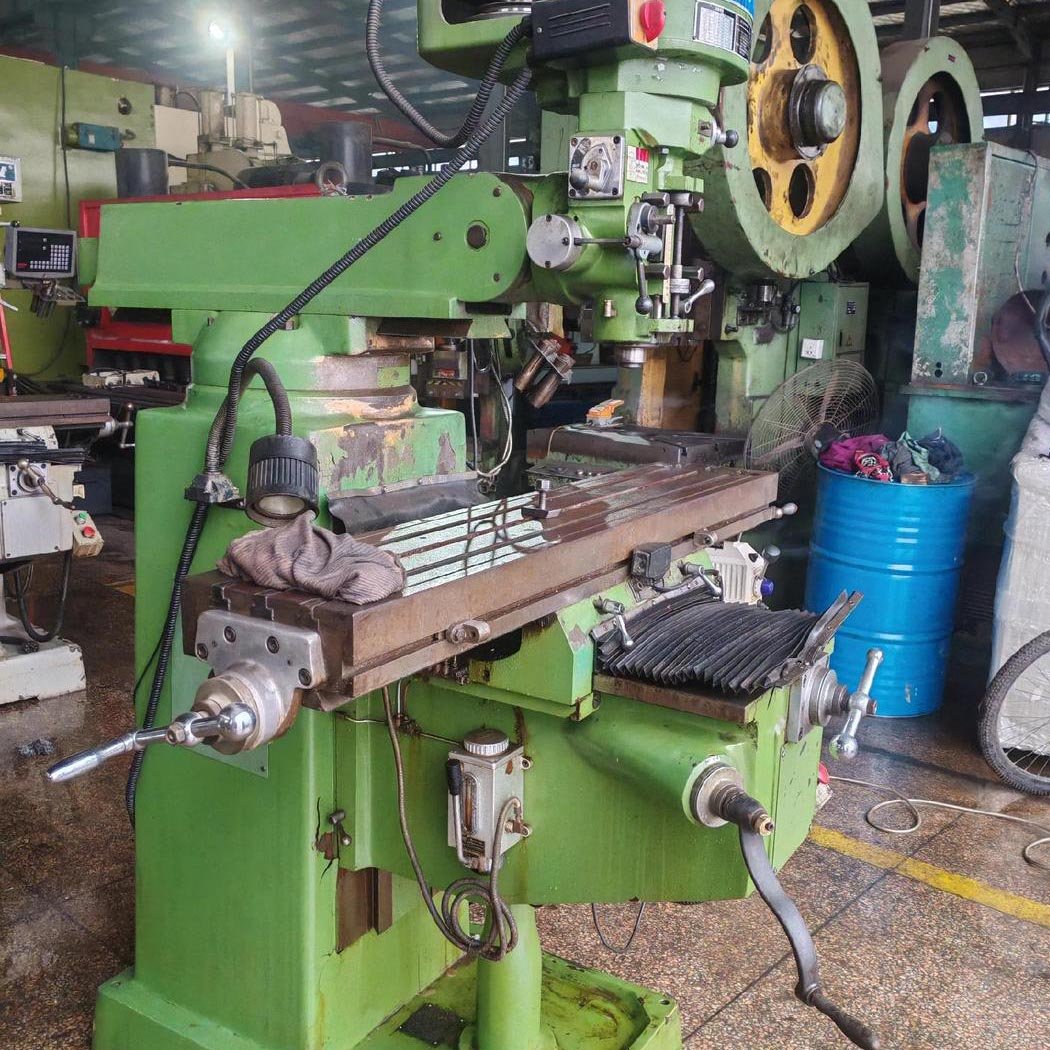

RATEE Turret Milling Machine – 1270mm × 254mm Table Size

The RATEE turret milling machine is a versatile and compact mill designed for tool rooms, maintenance workshops, mould-making facilities, and general machining applications. The ram and turret design allows the spindle head to be positioned at various angles, enabling milling, drilling, boring, and tapping operations on complex workpieces such as dies, jigs, fixtures, and small precision components. With its dovetail ways and chromed quill, this machine delivers smooth feed and reliable accuracy for both light-duty and intermittent heavy cutting.

Each unit undergoes thorough quality inspections to ensure long-term stability and consistent performance. With adequate stock and efficient logistics, we guarantee fast dispatch to keep your production on schedule. The RATEE turret mill offers an excellent balance of flexibility, ease of operation, and dependable service for everyday shop needs.

$ Click to Get Price

Machine Parameters

Table working area (L×W): 1270mm × 254mm
Longitudinal travel: 760mm
Cross travel: 380mm
Vertical travel (knee): 400mm
Quill travel: 120mm
Spindle taper: R8 (or ISO 30 optional)
Spindle speed range: 80 – 5440 rpm (variable or 16 steps)
Spindle motor power: 2.2 kW (3HP)
Overall dimensions (L×W×H): 1700mm × 1600mm × 2150mm
Machine weight: approx. 1200 kg
