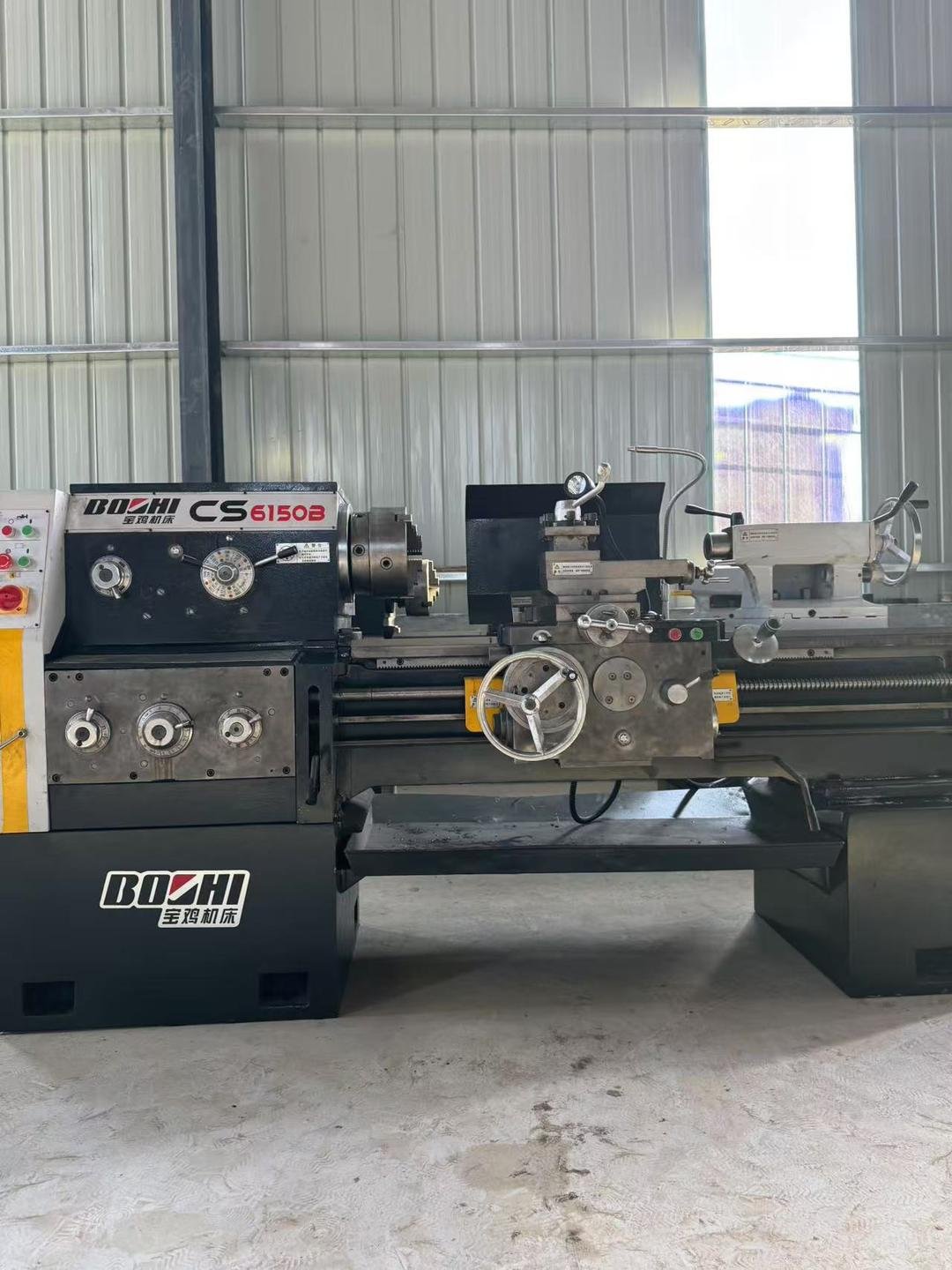

Baoji CS6150B Manual Lathe * 1000mm
Baoji CS6150B is an upgraded model featuring an enlarged 82mm spindle bore for enhanced bar stock capacity. Widely used in general machinery, valve, and pipe fitting industries for turning shafts and disc parts. Equipped with a 24-speed system for a wide cutting range. Durable and reliable. Fast delivery available.
$ Click to Get Price
Machine Parameters
Swing over bed: 500 mm
Swing over saddle: 300 mm
Distance between centers: 1000 mm
Max. turning length: Configurable
Spindle bore: 82 mm
Spindle speed: 24 steps 9-1600 rpm
Main motor power: 7.5 kW
Bed width: 390 mm
Tailstock taper: MT5#
Net weight: 2052-2900 kg
Voltage: 380V/50Hz (Customizable)
Tool shank size: 25×25 mm
Cross slide travel: 320 mm
