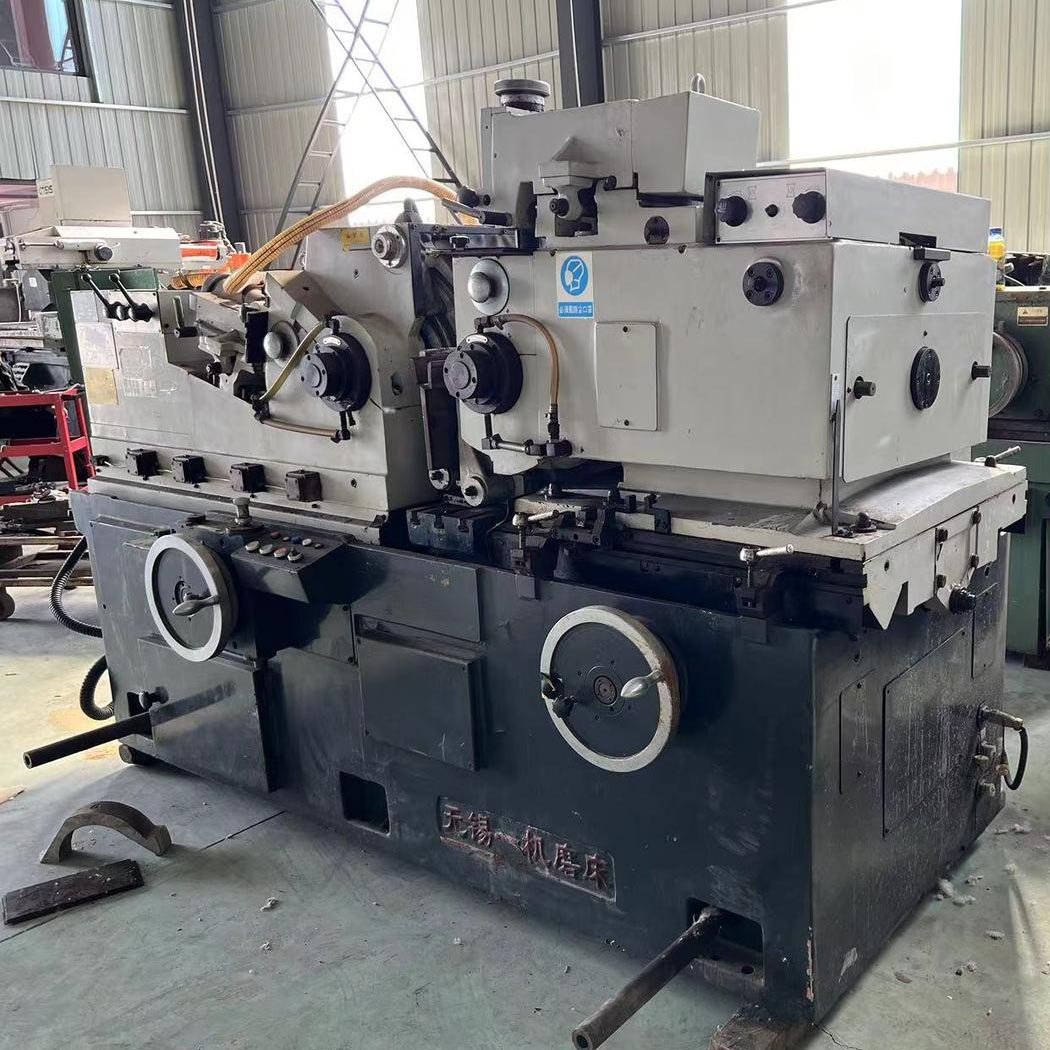

The Wuxi Yiji M10200 is a heavy-duty wide-wheel centerless grinder designed for high-volume through-feed grinding of long cylindrical workpieces such as precision tubes, bars, and rollers. It is widely used in bearing, automotive, hydraulic cylinder, and precision shaft manufacturing.
Built with a reinforced cast iron bed and hydrodynamic spindle bearings, this machine delivers exceptional stability and consistent roundness over extended production runs. The wider grinding wheel allows higher material removal rates while maintaining surface finish quality. Each unit undergoes strict factory inspection to ensure long-term durability and low maintenance.
With ready stock available, we guarantee fast delivery and responsive after-sales support. The M10200 offers excellent productivity and reliability, making it a solid choice for shops requiring efficient centerless grinding of large-diameter components.
$ Click to Get Price
Machine Parameters
Max. grinding diameter: 200 mm
Min. grinding diameter: 15 mm
Max. grinding length (through-feed): 6000 mm
Grinding wheel size (OD × W × ID): 500 × 300 × 305 mm
Regulating wheel size (OD × W × ID): 350 × 300 × 203 mm
Grinding wheel speed: 1100 r/min
Regulating wheel speed (infinitely variable): 10–180 r/min
Grinding wheel motor power: 45 kW
Regulating wheel motor power: 3 kW
Roundness accuracy: ≤ 0.0025 mm
Surface roughness: Ra ≤ 0.32 μm
Net weight: ~12000 kg
